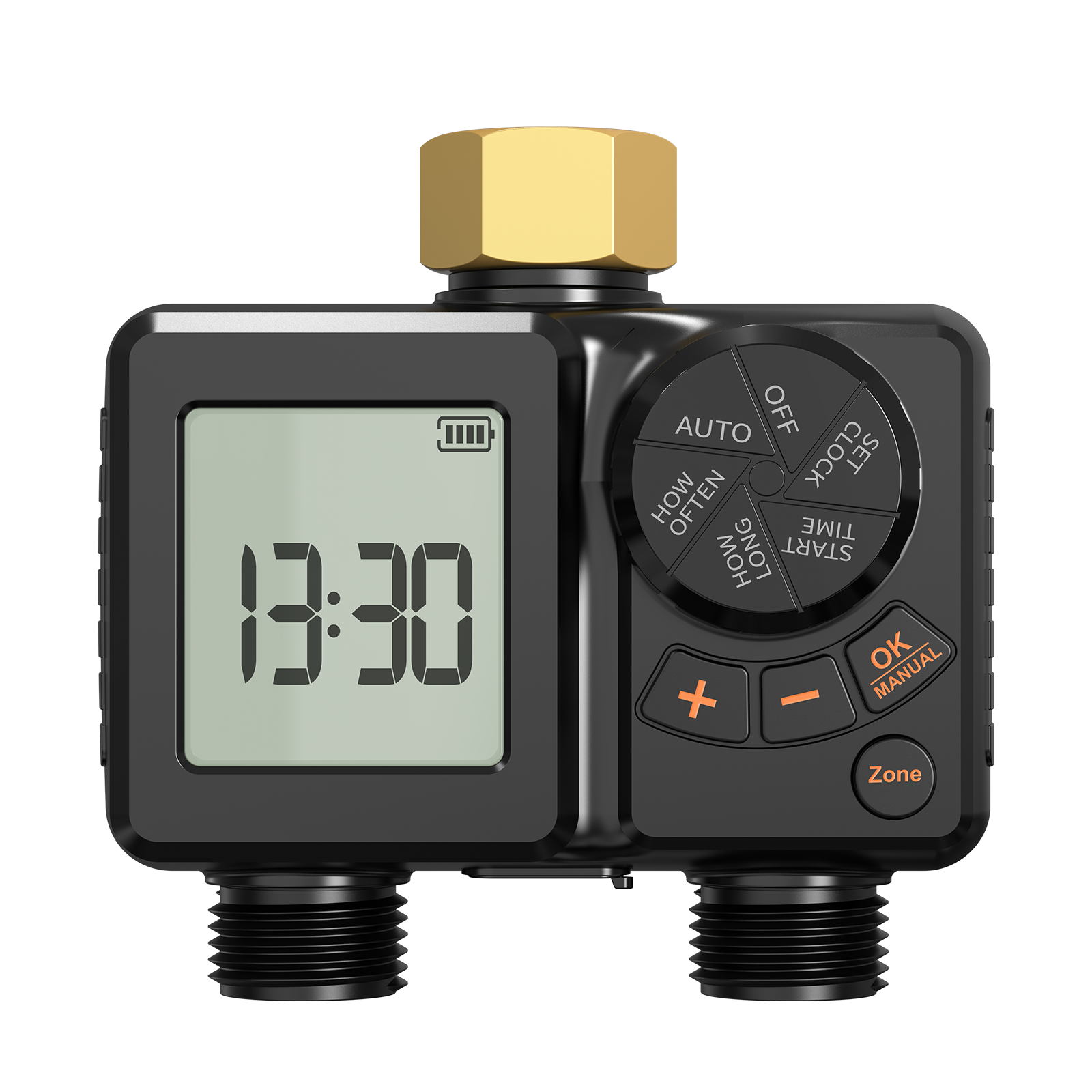

Built-in Battery Dual Outlet Water Timer – Rotary Button, Large Display, Type-C Charging & PC Waterproof Cover for Lawn Sprinkler System Outdoor Irrigation Controller for Garden Hose

Model: ZL02-T
Waterproof Rating: IPX6
Operating Temperature: 4.5–45°C
Screen Material: LCD Display
Screen Dimensions: 42 x 48 mm
Housing Dimensions: 11.9 x 14.9 x 7.2 cm
Housing Material: ABS + Anti-UV
Battery Specifications: 1800mAh 3.7V Lithium Battery
Battery Life: 6+ Months
Charging Method: USB-C (Supports external 5V solar charging)
USB-C Input: 5V⎓1A (Max); Compatible with fast chargers
Charging Time: Approx. 2–3 hours
Color:
Please select
Size:
Please select
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ZL02-T

  • Inhocon

  • 119*149*72mm

  • G3/4, NH3/4

  • IPX6

  • 1800mAh

  • None

  • none

  • ABS + UV Resistance

  • Solenoid

  • 4~6 Months

  • IPX6

Functions

1.Dual independent watering zones

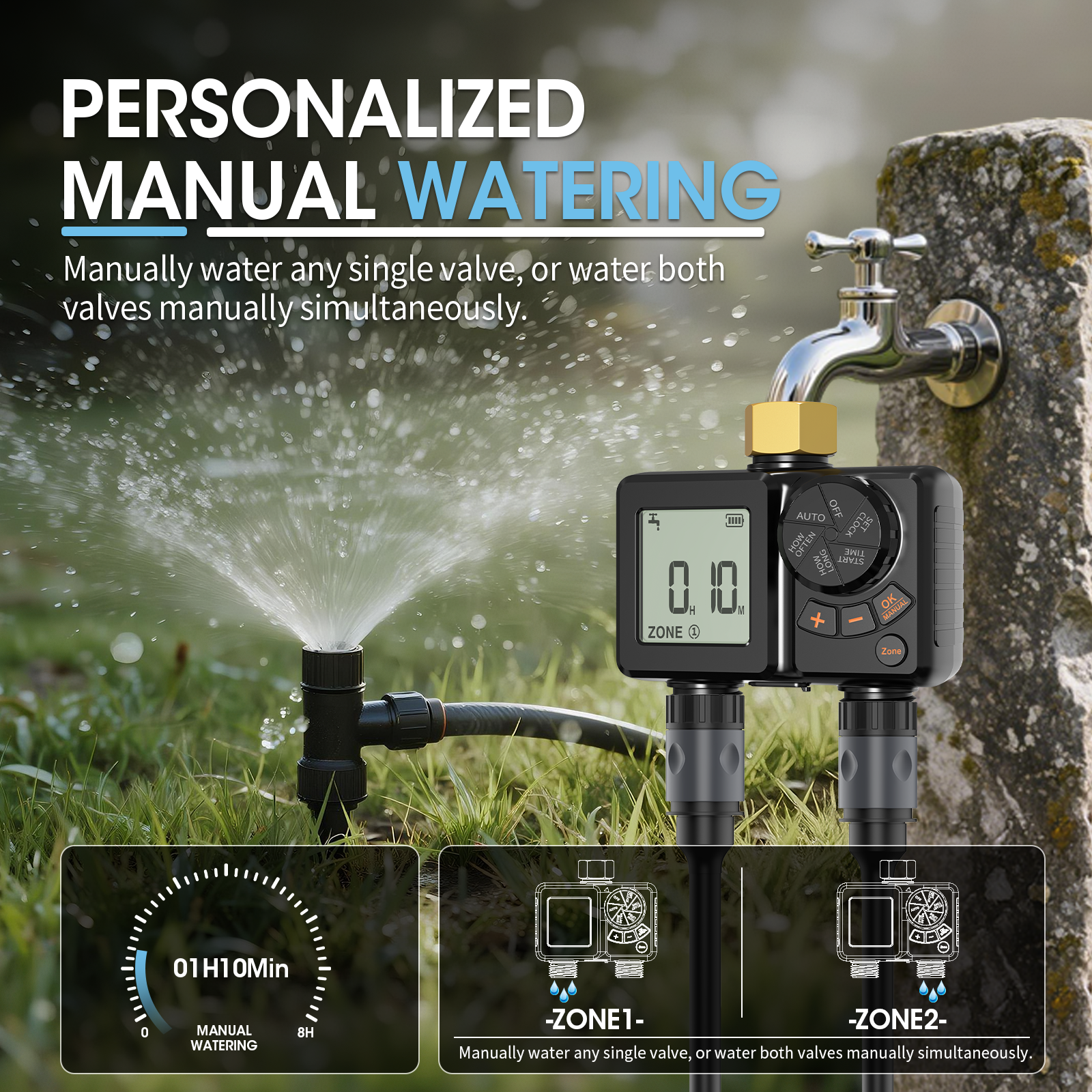

2.Manual watering: 1 min – 8 hrs

3.Watering duration: 0 min – 3 hrs 59 min

4.Watering frequency: 1–12 hrs, 1–7 days

5.Rain delay: 24 hrs / 48 hrs / 72 hrs

6.Child lock

7.Power-loss memory


Features

1.Dual-channel independent watering—two zones can be configured with distinct start times, durations, and schedules.

2.Built-in lithium battery—long lifespan of several years; eliminates the need for frequent battery replacements, reducing maintenance and operating costs.

3.Type-C charging port—supports USB charging and external solar panels for continuous power replenishment; compatible with power banks for emergency use in locations without fixed power sources (e.g., gardens, farms, terraces).

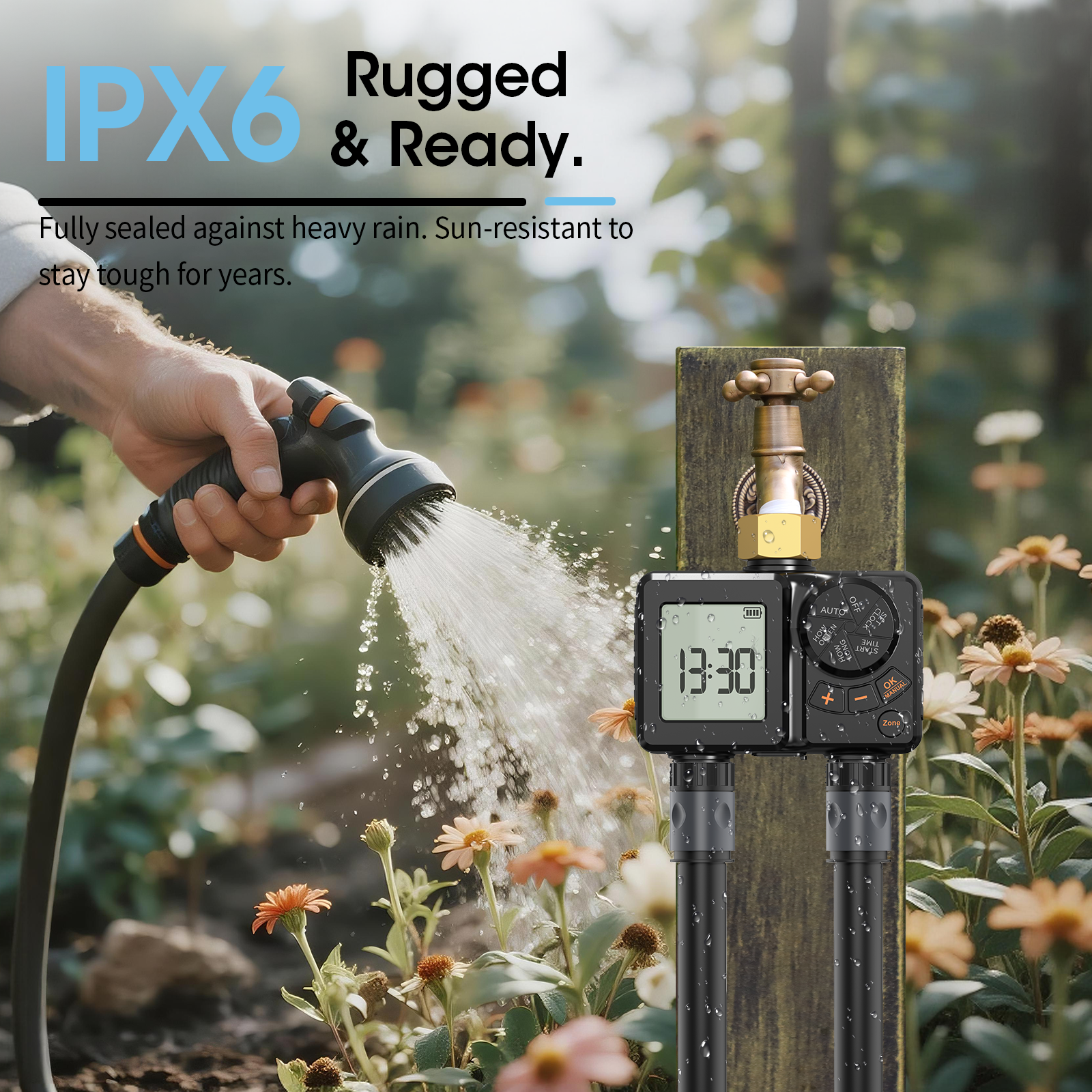

4.Upgraded IPX6 waterproofing—features potting compound technology and a PC panel cover; offers superior water resistance compared to traditional adhesive labels, ensuring durability against rain and stable long-term outdoor use.

5.Large-screen design—clear and easy to read, simplifying operation and setup.

6.Distinctive appearance—sleek, high-tech aesthetic that enhances product recognition.

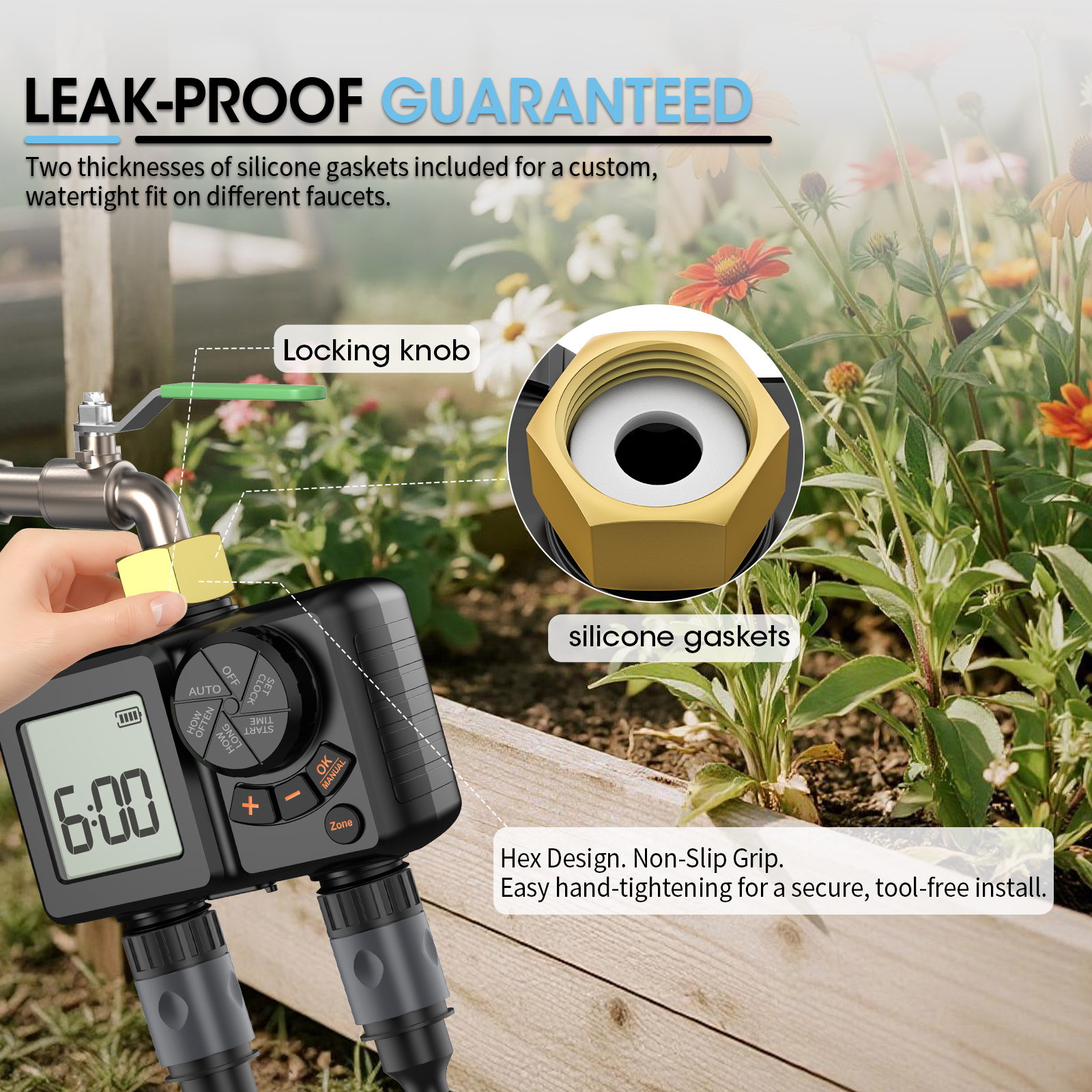

7.User-friendly design—hexagonal non-slip brass connector; easy to tighten securely without slipping or spinning freely.

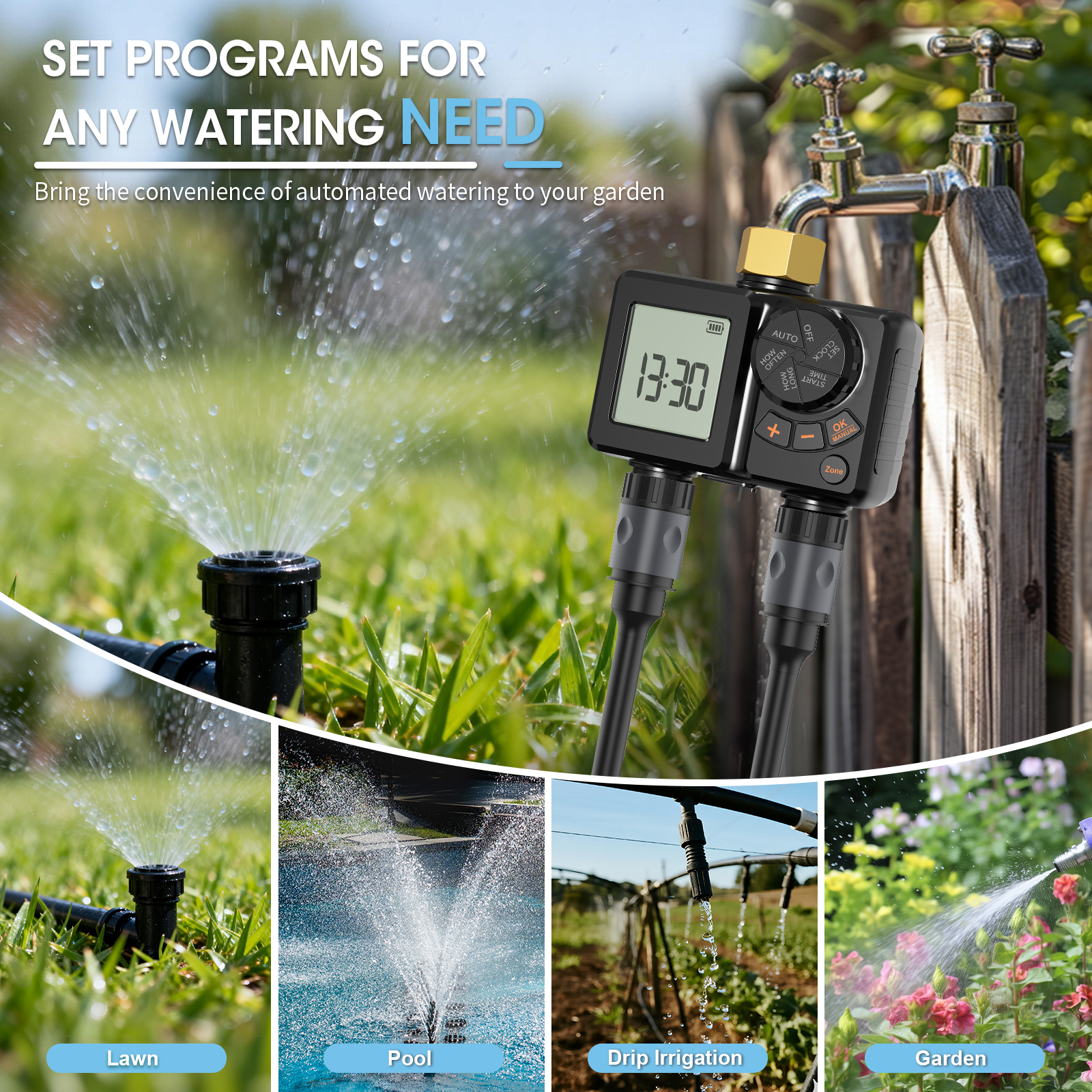

应用场景

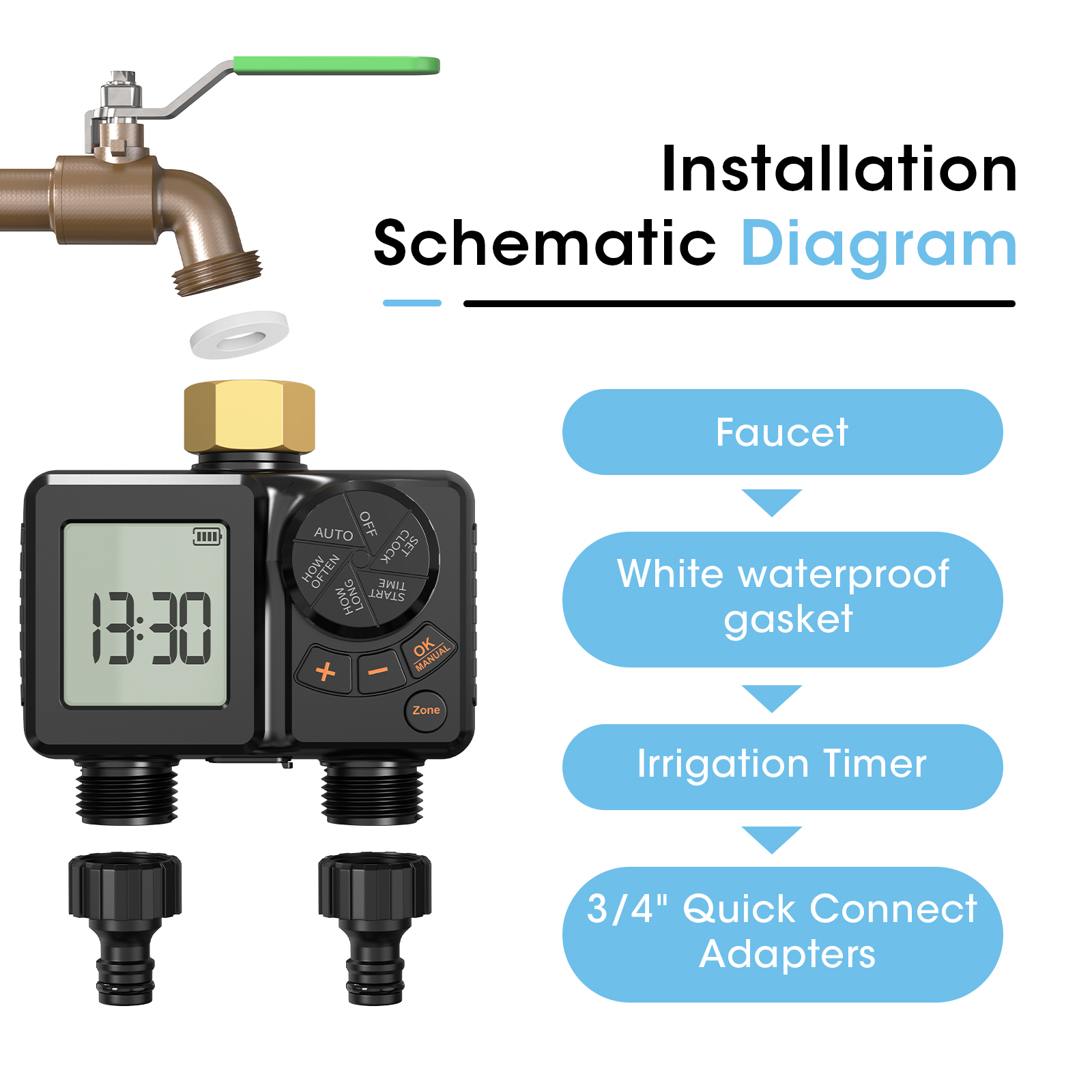

安装布置图

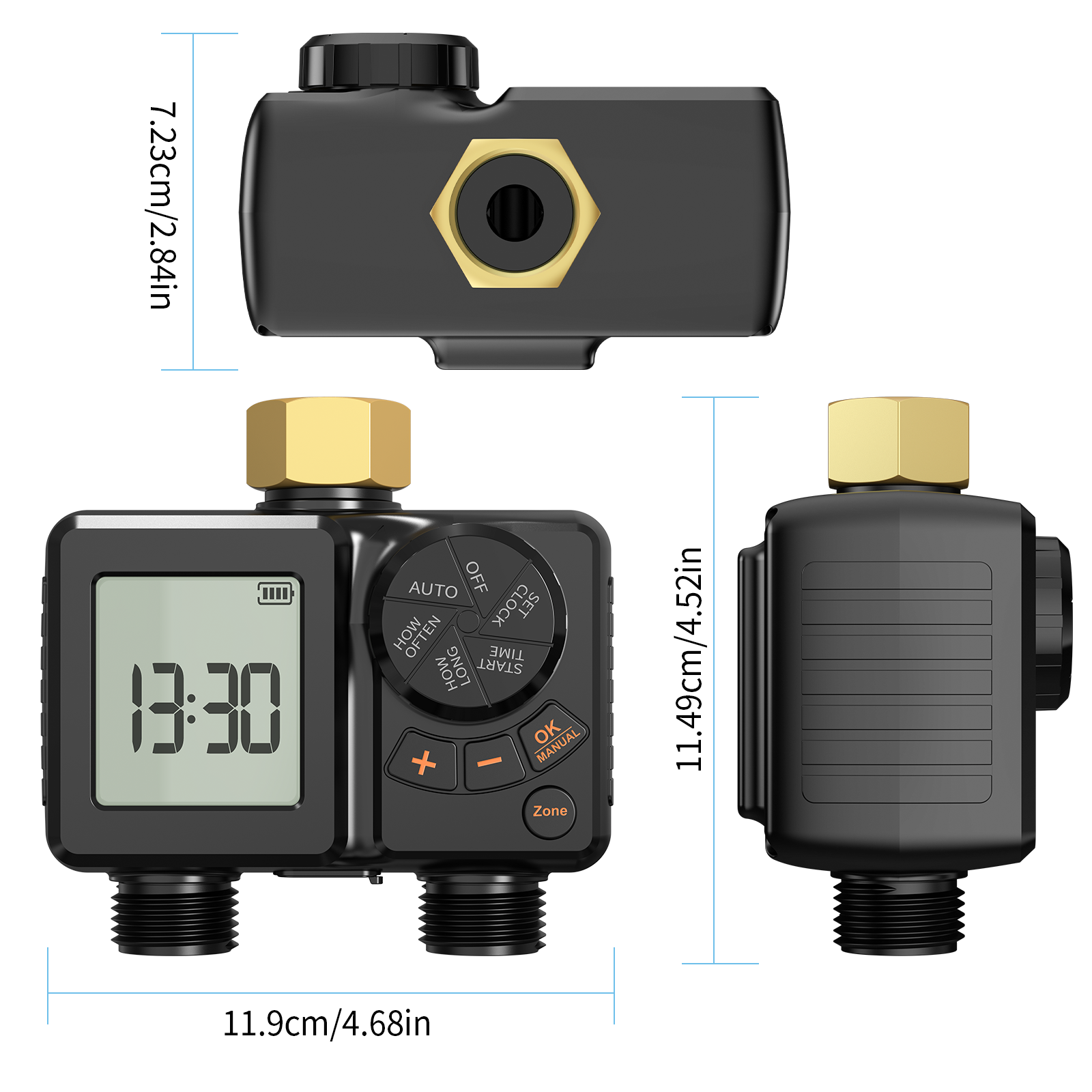

尺寸
